Horizontal Grinding Mill ...

Product | Vertical Mill | Millstones


Saboo horizontal grinding mill is fabricated from tested quality steel. The main frame is made up of heavy duty angle iron / channel structure with sturdy base plate.

The upper millstone is stationary and mounted on the base plate with the help of four numbers heavy-duty studs. The lower stone is revolving and mounted on a bright steel shaft, which is supported by anti friction bearing on both the ends and are housed into dust proof housing.

The mill is provided with a grain hopper, feed controlling device and fine adjustment hand wheel. The mills are fitted with high wear resistant best quality Emery stones.

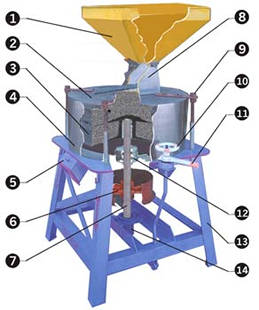

Sectional Detail


S.No

 Particulars

1. Steel Hopper.
2. Fixed Stone.
3. Runner Stone.
4. Out-Let.
5. Driven Pulley.
6. Bright Steel Shaft.
7. Feed Control Device.
8. Studs.
9. Fine Adjusting Wheel.
10. Quick Release Handle.
11. Upper Bearing Housing.
12. Main Frame.
13. Lower Bearing Housing
14. Steel Cover.


Technical Specifications
FLOUR MILL SIZE (mm) 400 500 600 750
Output (Kgs./ Hr) 200 400 600 1000
Hopper Capacity ( Kgs) 30 50 65 85
Pulley Size (Dia. x W) 250 x 90 300 x 100 350 x 100 400 x 100
R.P.M 650 600 550 400
Drive (HP) 5 10 15 25
Net Weight (Kgs.) 130 220 290 500
Gross Weight (Kgs.) 165 290 360 600
Shipping Volume (Cb.M) 0.55 0.85 1.00 1.50

Note : Due to regular developments, specifications may have little variations.
